SC UPC APC 12 colors PVC Fiber Optic Pigtail Single Mode FTTH Fiber to The Home SC Type

  • SC UPC APC 12 colors PVC Fiber Optic Pigtail Single Mode FTTH Fiber to The Home SC Type
  • SC UPC APC 12 colors PVC Fiber Optic Pigtail Single Mode FTTH Fiber to The Home SC Type
  • SC UPC APC 12 colors PVC Fiber Optic Pigtail Single Mode FTTH Fiber to The Home SC Type
Place of Origin Guangdong, China
نام تجاری KCO
گواهی ISO9001, RoHS
Model Number SC-SM-12fo-2.0m
Minimum Order Quantity Negotiation
قیمت negotiable
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
شرایط پرداخت Western Union، T/T، L/C
Supply Ability 900,000pcs/month

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
رابط SC/UPC هسته 12 هسته
پوشش PVC، LSZH، ... طول کابل 2.0 متر
طول هواکش 30 میلی متر قطر کابل 2x3.0mm
برجسته کردن

fibre optic patch cable,patch cord pigtail

,

patch cord pigtail
پیام بگذارید
توضیحات محصول

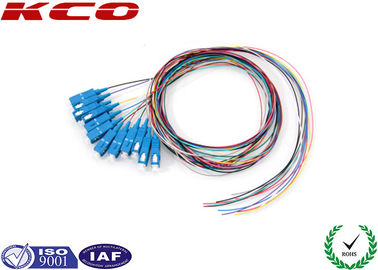

SC UPC APC 12 Colors PVC Fiber Optic Pigtail
Single Mode FTTH Fiber to The Home SC Type pigtail with 12 distinct color-coded cores for easy identification and organization in fiber optic networks.
SC UPC APC 12 colors PVC Fiber Optic Pigtail Single Mode FTTH Fiber to The Home SC Type 0 SC UPC APC 12 colors PVC Fiber Optic Pigtail Single Mode FTTH Fiber to The Home SC Type 1
Product Specifications
Specification Details
Connector Type SC/UPC 2.0mm
Fiber Cores 12 cores with different colors
Cable Diameter 2.0mm
Length 1.5m
Insertion Loss (IL) 0.3dB
Return Loss (RL) 55dB
Fiber Mode Single mode 9/125
Cable Cover PVC
Applications
  • CATV (Cable Television)
  • Telecommunication networks
  • Computer fiber networks and fiber test equipment
  • Communication rooms
  • FTTH (Fiber to The Home)
  • LAN (Local Area Network)
  • FOS (Fiber Optic Sensor)
  • Fiber Optic Communication System
  • Optical fiber connected and transmitted equipment
  • Defense combat readiness systems
Key Characteristics
  • Low insertion loss
  • High return loss
  • Good repeatability
  • Good interchange capability
  • Excellent environmental adaptability
Product Description
SC fiber optic pigtails are available in single mode UPC APC and multimode PC configurations. The cable configuration can be simplex, duplex, or multi-fiber fan out/break out. Available cable diameters include 0.9mm, 2.0mm, 3.0mm, and 4.2mm.
We also supply SC fiber optic patch cables with various cable diameters, lengths, and connector types to meet diverse networking requirements.
About Fiber Optic Patch Cables
A fiber optic patch cable is a fiber optic cable capped at either end with connectors that allow rapid and convenient connection to CATV, optical switches, or other telecommunications equipment. The thick protective layer is designed to connect optical transmitters, receivers, and terminal boxes.
About Single Mode Cables
Single Mode fiber optic cable features a small diametral core that allows only one mode of light to propagate. This design reduces light reflections as light passes through the core, lowering attenuation and enabling signals to travel longer distances. Typically used by Telcos, CATV companies, and educational institutions for long-distance, high-bandwidth applications.
About Multi Mode Cables
Multimode fiber optic cable has a large diametral core that allows multiple modes of light to propagate. This increases light reflections, enabling more data transmission but resulting in higher dispersion and attenuation over long distances. Ideal for short-distance data and audio/video applications in LANs.
Multi-mode fibers are described by their core and cladding diameters, typically 50/125 µm or 62.5/125 µm. Current multi-mode fiber categories include OM1, OM2, OM3, and OM4, each with specific performance characteristics and applications.
