127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding

محل منبع چین
نام تجاری KCO, Kocent Optec Limited
گواهی RoHS, ISO
شماره مدل KCO-JIG-FC-36
مدرک fiber optic polishing rubbe...ds.pdf
مقدار حداقل تعداد سفارش مذاکره
قیمت negotiable
جزئیات بسته بندی کیسه کاغذ، جعبه کارتن
زمان تحویل 2 تا 5 روز پس از دریافت پرداخت
شرایط پرداخت T/T ، Western Union ، L/C
قابلیت ارائه 200000 عدد در ماه

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
P/n KCO-PAD-JP-70 درجه 0.3dB، 3D
محدوده پولیش اتصال دهنده فیبر نوری اندازه دیسک 127 میلی متر
اتصال حداکثر کانکتور 48 ماشین دستگاه پولیش فشار گوشه
برجسته کردن

127mm Fiber Optic Polishing Pad,0.3dB Grade Polishing Rubber Pad,3D Polishing Fiber Connector Polishing Pad

,

0.3dB Grade Polishing Rubber Pad

,

3D Polishing Fiber Connector Polishing Pad

پیام بگذارید
توضیحات محصول

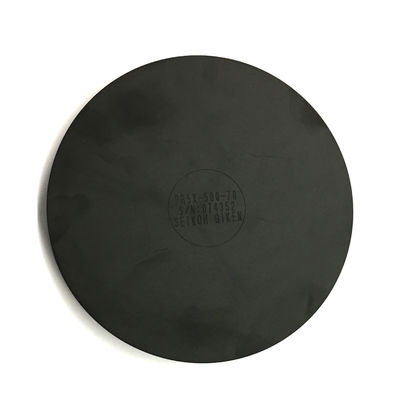

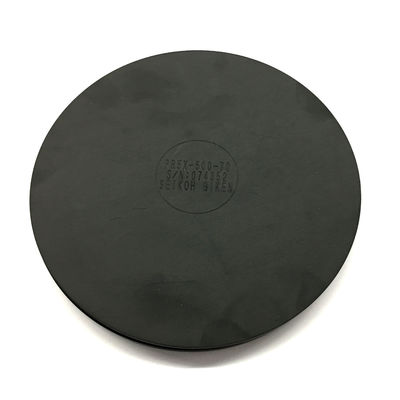

PR5X-500-60 70 75 80 85 90 fiber optic connectors polishing rubber pad 127mm
Product Description

PR5X-500-60 70 75 80 85 90 fiber optic connectors polishing rubber pad 127mm

  • Fiber Optic Polishing Rubber Pad is suitable for grinding optical fiber connectors, including ceramic ferrules, MTP, MPO and other non-standard connectors
  • Widely used in four-point pressure grinding machines and precision engineering SFP-550 series grinding machines
  • Available in multiple degrees (60°, 70°, 75°, 80°, 85°, 90°) for different polishing processes
Applications
  • Fiber optic connector polishing
  • Fiber optic patch cord production
  • Fiber optic pigtail production
  • Fiber optic splitter production
  • Fiber optic fast connector production
Related Machines
127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 0 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 1 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 2 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 3
Specifications
  • Used in grinding spherical surfaces
  • Model: 500-50, 55, 60, 65, 70, 75, 80, 85, 90 (permanent stores)
  • External Dimension: 127*5mm
  • Material: Silica gel
Product Applications
Product Type Application
D
  • Lapping for Fiber optic connector, fiber array, glass pig tail (angle removal, rough grinding, medium polishing, fine finishing)
  • Polishing for magnetic heads and hard disks
  • Lapping and polishing for optical glasses, optical crystal, LED
  • Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.)
  • Edge polishing for silicon wafer
SC
  • Epoxy and glass removal
  • Lapping and polishing for plastic ferrules
  • Fine finishing and polishing for magnetic heads
AO
  • Polishing for fiber optical connectors
  • Polishing for silicon wafer used in Solar cells
  • Polishing for hard disks
  • Polishing for ITO
  • Lapping and polishing for optical crystal
CO
  • The final polishing for fiber optical connectors
  • Polishing for optical devices
SO The final super-precise polishing of optical fiber connector
Detailed Specifications
Type D (Diamond) SC (Silicon Carbide) AO (Aluminum Oxide) CO (Cerium Oxide) SO (Silicon Oxide)
Grit Size/um 30 Green Light Green Green
20 White
16 White
15 Yellow-Green Tawny Light Green Brown
12 Yellow
9 Blue Orange Gray-green Blue
6 Yellow
5 Gray-green White
3 Pink Tan Pink & White
2 Gray-green Bright Green
1 off-white Lavender Gray-green Blue
0.5 off-white Brown-yellow White White
0.3 White Dark Red
0.2 Grey
0.1 Light Brown White
0.02 Transparent
0.01 Transparent
Recommended Polishing Medium Water/Oil Water/Oil Water/Oil SOQ-12D Water
Standard Size Disk: Φ70mm, Φ110mm, Φ127mm(5inch), Φ203mm(8inch)
Sheet: 114mm*114mm, 152mm*152mm (6inch), 228*228mm (9inch)
Note: Other film sizes are available upon request.
