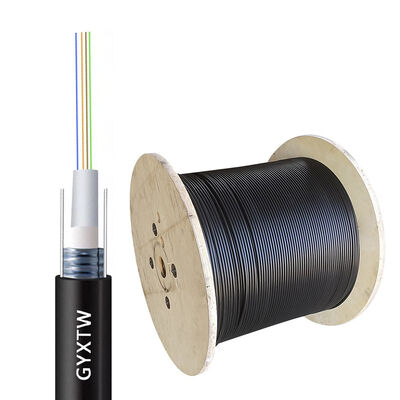

GYXTW 8b1 SM 8 Cores Aerial Light-armored Outdoor Fiber Optical Cable

GYXTW outdoor fiber optic cable is a type of outdoor uni-tube light-armored fiber optic cable designed for aerial and duct applications. Its name is an abbreviation based on Chinese industry standards, where GY stands for outdoor, X for center tube (uni-tube), T for jelly-filled, and W for steel tape armor with parallel steel wires

Structural Components:
Central Loose Tube: Contains 2 to 24 optical fibers (typically G.652D single-mode or other) protected by a high-modulus plastic tube filled with a water-resistant jelly.
Armoring tape: A layer of corrugated steel tape (PSP) is wrapped longitudinally around the tube to provide moisture resistance and protection against rodents and mechanical crush.
Strength Members: Two parallel steel wires are embedded on opposite sides of the outer jacket to provide the necessary tensile strength for aerial hanging and long-distance pulls.
Outer Sheath: A durable Polyethylene (PE) jacket that is UV-resistant and suitable for harsh outdoor environments.

• Feature	Typical Specification
  Fiber Count	2 to 24 cores
  Installation Method	Aerial, Duct, or Direct Burial
  Crush Resistance	High (due to corrugated steel tape)
  Water Blocking	Jelly-filled tube + water-blocking material

Aerial Deployment: use for suspension between poles due to its light-weight design and high tensile strength.

Duct Installations: Compact size and smooth PE jacket make it easy to pull through underground conduits.

Backbone & Local Networks: Widely used in telecommunications FTTH, CCTV, and campus-wide data transmission.

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

• International express such as UPS, TNT, DHL, etc
• Internatioal air: CA, AA, EA, etc
• By sea
